Choosing the right beam angle is one of the most critical decisions in commercial lighting design.

It directly affects visual comfort, product presentation, and spatial atmosphere in retail stores, offices, hotels, museums, and architectural spaces.

At Vitraluce Lighting, we support lighting designers and project engineers with advanced optical solutions, helping them select the most suitable beam angles for different applications.

This guide explains how beam angles from 8° to 60° influence lighting performance in real projects.

8° Beam Angle – Precision Luxury Accent Lighting

Best Applications: Jewelry stores, luxury boutiques, museums, art galleries, display cabinets

An 8° beam angle creates a highly concentrated spotlight that enhances premium objects with strong visual focus.

It minimizes spill light and increases contrast, making it ideal for luxury product presentation.

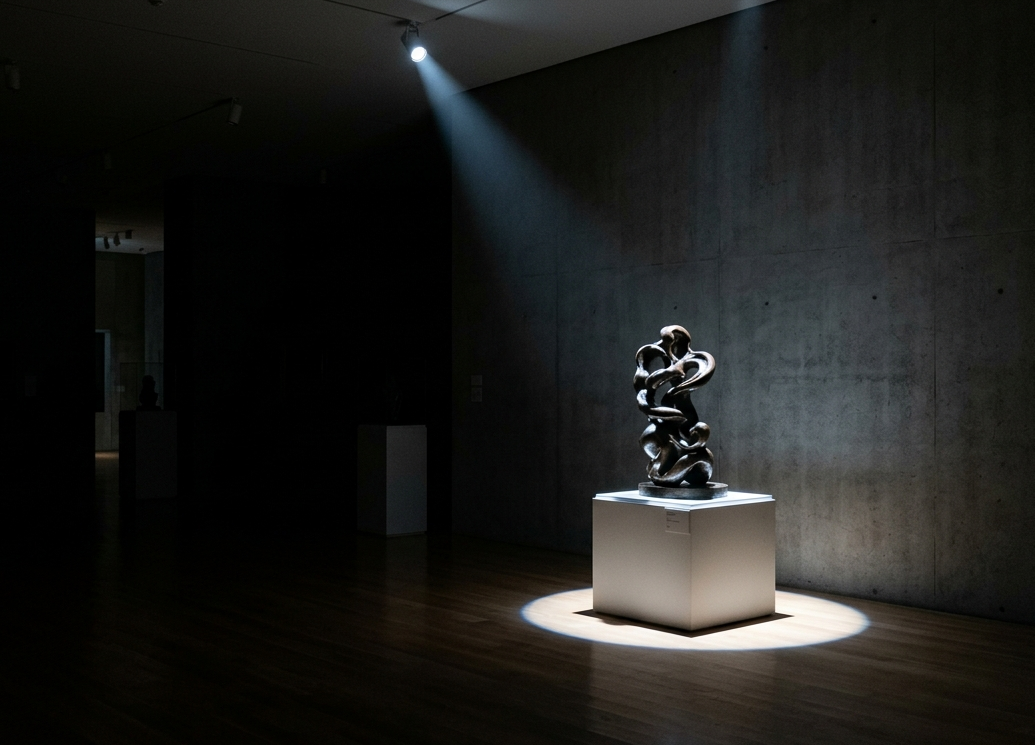

# 8° narrow beam spotlight

10° Beam Angle – Architectural Feature Highlighting

Best Applications: Columns, sculptures, hotel entrances, facades, feature walls

A 10° beam is commonly used in architectural lighting to emphasize vertical elements and textures while maintaining a clean and controlled light distribution.

15° Beam Angle – Gallery & Museum Lighting

Best Applications: Paintings, exhibitions, art displays, high-end retail showcases

The 15° beam provides a balance between precision and coverage, making it ideal for artwork illumination where detail and uniformity are equally important.

24° Beam Angle – Hospitality & Medium Accent Lighting

Best Applications: Restaurants, hotels, cafés, reception areas, residential projects

A 24° beam is widely used in hospitality lighting due to its balanced spread, creating a warm and comfortable atmosphere without losing focus on key areas.

# 36° beam angle retail lighting

36° Beam Angle – Commercial General Lighting Standard

Best Applications: Offices, retail stores, supermarkets, showrooms, schools

The 36° beam angle is one of the most commonly used solutions in commercial lighting. It provides uniform illumination for general-purpose spaces while maintaining good visual comfort and efficiency.

45° Beam Angle – Soft Ambient Lighting

Best Applications: Hotel rooms, lounges, waiting areas, residential living spaces

A 45° beam produces soft, wide illumination that reduces shadows and creates a relaxing environment suitable for hospitality and residential applications.

60° Beam Angle – Wide Coverage & Wall Washing Lighting

Best Applications: Shopping malls, airports, exhibition halls, large offices, public areas

The 60° beam angle delivers broad light distribution, ideal for large-area coverage and wall washing applications where uniform brightness is required.

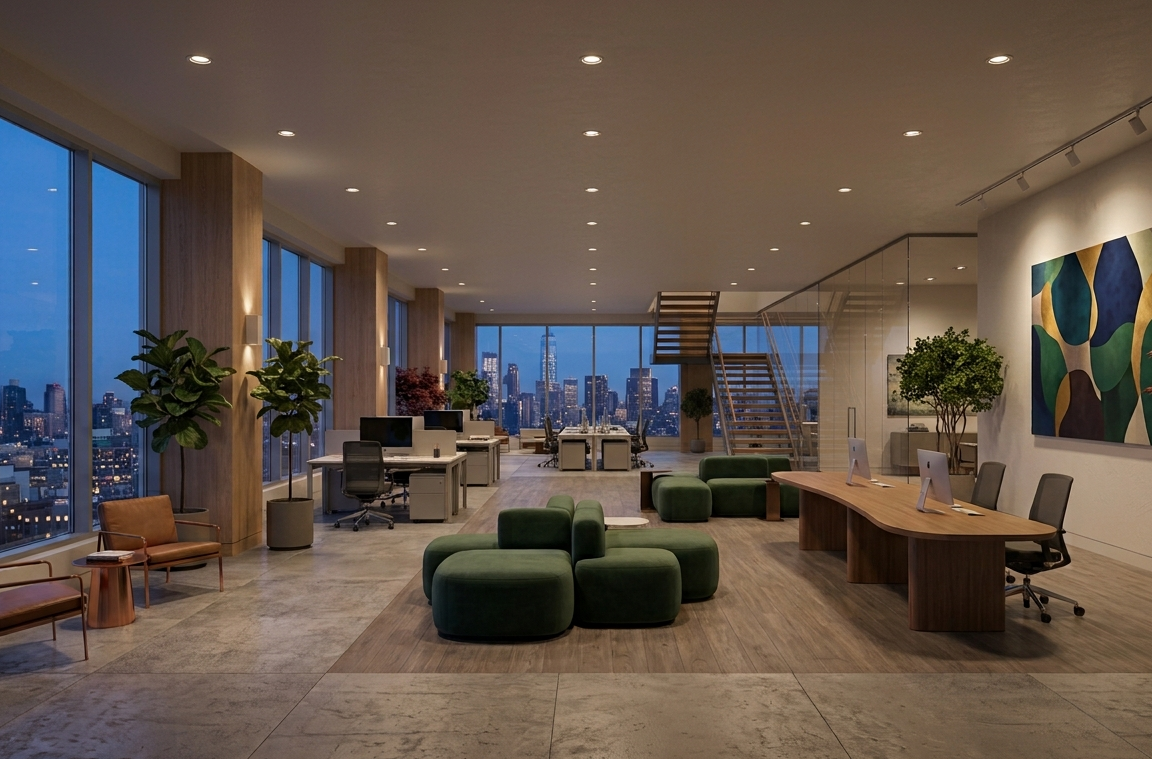

# 60°  beam angle commercial office lighting

How to Choose the Right Beam Angle

• When selecting a beam angle for a commercial lighting project, consider the following key factors:
• What is the lighting target: object, surface, or full space?
• Ceiling height and mounting distance
• Desired visual comfort and glare control level
• Space function (retail, hospitality, office, or architecture)
• Required contrast between accent and ambient lighting

A professional lighting design balances beam angle, lumen output, spacing, and glare control to achieve optimal visual performance and energy efficiency.

Vitraluce Lighting Project Support

At Vitraluce Lighting, we provide complete lighting support for commercial projects, including:

• Beam angle selection guidance
• Lighting simulation (Dialux / layout design)
• Custom optical lens development
• OEM & ODM manufacturing services
• DALI and smart lighting integration
• Low glare architectural lighting solutions

The right beam angle is essential for creating visually comfortable and energy-efficient commercial environments.

Whether you are designing retail displays, hospitality spaces, or architectural lighting, precise optical control ensures the best lighting experience.
